Space Saving Flexible Beam Clamp System Shoring Scaffolding Systems

Beam Forming Support-3- Simple Operation Neat, Flexible Clamp System For Beam Construction

Overview

Beam clamp is the main components of the system; it is designed as a special “waler” for beam’s side formwork, it is neat, flexible, easy operation. With the system, the formwork is quickly assembled and dismantled, time and labor are both saved.

Characteristics

1 . Height adjustable:With the use of extension part, 2 different specifications of beam clamp can shutter any beam with height up to 1225mm.
The distance between two beam clamps is varying based on the beam height.
2 . Compatible:This system is well compatible with the CNME slab formwork, which means great efficiency and fast cycle times.
3 . Space-saving stacking :Practical way of stacking enables the shipping and storage extremely economical.

Value-added Service

ZNLS will provide relating technical service including formwork & scaffolding proposal drawing, material list, shop drawing, calculation sheet, loading capacity analysis and assembly instruction on site and other after-sale service. Moreover, cargo transport arrangement and tracking, relating import and export documents will be supplied as customs’ requirements.

Concrete Shoring Systems

Tubular Scaffolding System

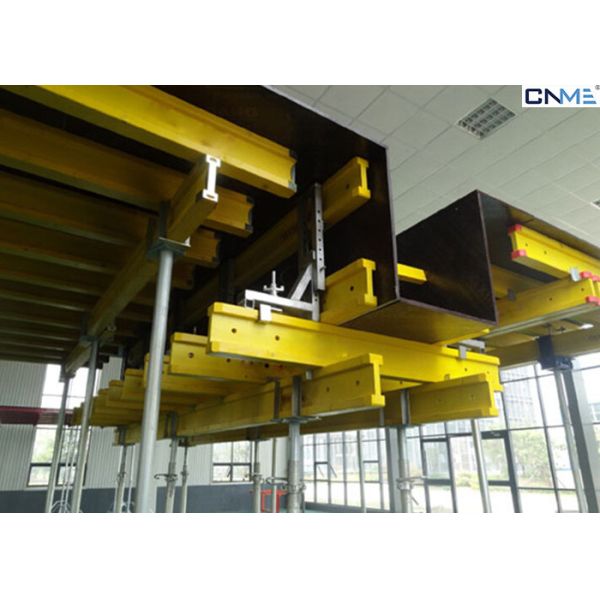

Space Saving Flexible Beam Clamp System Shoring Scaffolding Systems Images
